Diamant

650 GDW

Diamant

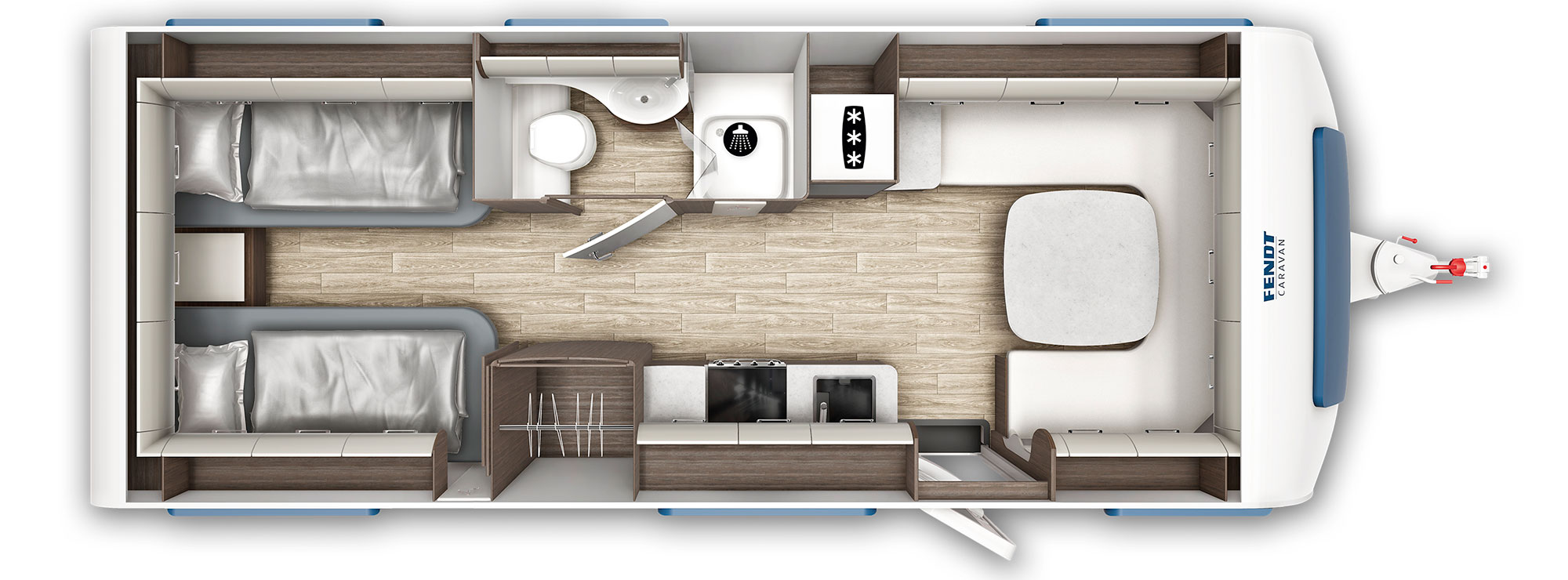

Diamant 650 GDW

Chassis

"White" drawbar cover
"White" overrun device cover
Approval for 100 km/h
Automatic reversing
Black polished alloy wheels
Brake AAA, self-adjusting (AL-KO)
Euro axle system (AL-KO)
Extended crank supports
Galvanised stable-form corner steadies with "Big-Foot" (AL-KO)
Jockey wheel with load indicator
Low-profile tyres
Safety coupling AKS 3004 (AL-KO)
Shock absorber
System lightweight chassis, fully galvanised (AL-KO)

Exterior body

Manoeuvering handles, ergonomic and stable, at the front and rear
"Skylight" panoramic roof hood with lighting (LED)
Awning light (LED), switched twice
Awning rail with lighting on the door side
Bottle crate lid with gas-pressure damper, three-point locking
Brake lights integrated in upper position lights
Central locking system
Double-glazed, tinted hinged windows that can be operated with one hand and combined fly-screen/blackout roller blind
Entrance door with integrated and insulated access, waste collector and storage, tinted window and pleated blackout blind in the upper entrance door area
Exterior storage flap
Fly-screen door in the entrance area
Forced ventilation according to EN standard 1645-1
Front part partly with LFI technology
Rear fog lamp(s)
Rear part partly with LFI technology
Reversing lights (2 pieces)
Sandwich construction
Water tank filler cap with retaining strap
Wheel housings, fully insulated

Living room/sleeping area

Carpet in the door sill with the Fendt-Caravan logo
Carpeted floor, bound at the edge and loosely laid
Clothes rack in the sleeping area
Decorative package (2 cushions/2 placemats)
Ergonomically shaped back padding
Furniture in "Rovero Castello" decor, "Faro" or "Salina" upholstery variants as well as "Zingst" leather upholstery (optional extra)
Headrests in the seating suite, height adjustable
High-density seat upholstery
Indirect lighting (LED)
LED lighting
Leesspots 12V in rondzitgroep
Lift-O-Mat (single and double beds)
Lighting in the wardrobe with motion sensor
Mattresses: climate-controlled comfort foam (7 zones) (single/double beds)
MINI and MIDI roof hood (Dometic) with crank, forced ventilation, integrated blackout pleated blind and roller fly screen integrated in a Skylight panoramic roof hood
Reading spotlights (12 V) in the sleeping area
Seat upholstery with sprung interior in comfort quality
Slatted bed base with fully flexible and permanently elastic bridged joints and hardness adjustment (single and French beds)
Soft roller blinds with pleated fabric (blackout roller blind from below)
Storage compartments with soft-close hinges
Ventilated storage compartments with indirect ceiling lighting (LED)
Vinyl flooring, hard-wearing, easy to care for
Winter backrests
Wooden sliding door

Kitchen/bathroom

Washbasin with a sanitary acrylic design including shelves, bathroom cabinet and lighted mirror
Backlit kitchen wall panelling in glass look
Bathroom lighting (LED/12 V)
Brass kitchen mixer tap
Central washrooms with large wall units, generous shelves under the sink and an illuminated mirror
Comfort pleated roller blind on the kitchen window
Compressor refrigerator (177 l when freezer compartment is removed), slim tower, that can be opened from both sides, with interior lighting
Cutlery inserts with a soft-touch surface
Flush toilet with diode level indicator and holding tank (rollable)
Kitchen storage compartments with soft-close hinges
Kitchens with large drawers
Oven with grill (gas)
Shower cubicle
Stainless steel sink with glass cover
Stove with safety pilot and automatic ignition (3-burner)
Towel/clothes hooks and toilet paper holder
Washroom window, hinged, made of frosted glass with blackout roller blind and roller fly screen
Waste collector integrated into the entrance door
Workplace lighting (LED)

Water

Fresh water (fixed tank 10 d)/45 e) litres) with external filling
Fresh water level indicator
Mobile waste water tank (24 L)

Multimedia

Sky TV bracket with articulated arm
TV cabling (230 V socket)

Technology/heating/air conditioning

Fendt-CaravanCONNECT with app control
Fuse box (230 V) with residual current device (safety switch)
Hot water heating and hot water underfloor heating (Alde)
Smoke detector
Switch on the entrance door for the ceiling light and awning light
Switching power supply 350 W
USB double socket(s)

Diamant 650 GDW

Chassis

"White" drawbar cover
"White" overrun device cover
Approval for 100 km/h
Automatic reversing
Black polished alloy wheels
Brake AAA, self-adjusting (AL-KO)
Euro axle system (AL-KO)
Extended crank supports
Galvanised stable-form corner steadies with "Big-Foot" (AL-KO)
Jockey wheel with load indicator
Low-profile tyres
Safety coupling AKS 3004 (AL-KO)
Shock absorber
System lightweight chassis, fully galvanised (AL-KO)

Exterior body

Manoeuvering handles, ergonomic and stable, at the front and rear
"Skylight" panoramic roof hood with lighting (LED)
Awning light (LED), switched twice
Awning rail with lighting on the door side
Bottle crate lid with gas-pressure damper, three-point locking
Brake lights integrated in upper position lights
Central locking system
Double-glazed, tinted hinged windows that can be operated with one hand and combined fly-screen/blackout roller blind
Entrance door with integrated and insulated access, waste collector and storage, tinted window and pleated blackout blind in the upper entrance door area
Exterior storage flap
Fly-screen door in the entrance area
Forced ventilation according to EN standard 1645-1
Front part partly with LFI technology
Rear fog lamp(s)
Rear part partly with LFI technology
Reversing lights (2 pieces)
Sandwich construction
Water tank filler cap with retaining strap
Wheel housings, fully insulated

Living room/sleeping area

Carpet in the door sill with the Fendt-Caravan logo
Carpeted floor, bound at the edge and loosely laid
Clothes rack in the sleeping area
Decorative package (2 cushions/2 placemats)
Ergonomically shaped back padding
Furniture in "Rovero Castello" decor, "Faro" or "Salina" upholstery variants as well as "Zingst" leather upholstery (optional extra)
Headrests in the seating suite, height adjustable
High-density seat upholstery
Indirect lighting (LED)
LED lighting
Leesspots 12V in rondzitgroep
Lift-O-Mat (single and double beds)
Lighting in the wardrobe with motion sensor
Mattresses: climate-controlled comfort foam (7 zones) (single/double beds)
MINI and MIDI roof hood (Dometic) with crank, forced ventilation, integrated blackout pleated blind and roller fly screen integrated in a Skylight panoramic roof hood
Reading spotlights (12 V) in the sleeping area
Seat upholstery with sprung interior in comfort quality
Slatted bed base with fully flexible and permanently elastic bridged joints and hardness adjustment (single and French beds)
Soft roller blinds with pleated fabric (blackout roller blind from below)
Storage compartments with soft-close hinges
Ventilated storage compartments with indirect ceiling lighting (LED)
Vinyl flooring, hard-wearing, easy to care for
Winter backrests
Wooden sliding door

Kitchen/bathroom

Washbasin with a sanitary acrylic design including shelves, bathroom cabinet and lighted mirror
Backlit kitchen wall panelling in glass look
Bathroom lighting (LED/12 V)
Brass kitchen mixer tap
Central washrooms with large wall units, generous shelves under the sink and an illuminated mirror
Comfort pleated roller blind on the kitchen window
Compressor refrigerator (177 l when freezer compartment is removed), slim tower, that can be opened from both sides, with interior lighting
Cutlery inserts with a soft-touch surface
Flush toilet with diode level indicator and holding tank (rollable)
Kitchen storage compartments with soft-close hinges
Kitchens with large drawers
Oven with grill (gas)
Shower cubicle
Stainless steel sink with glass cover
Stove with safety pilot and automatic ignition (3-burner)
Towel/clothes hooks and toilet paper holder
Washroom window, hinged, made of frosted glass with blackout roller blind and roller fly screen
Waste collector integrated into the entrance door
Workplace lighting (LED)

Water

Fresh water (fixed tank 10 d)/45 e) litres) with external filling
Fresh water level indicator
Mobile waste water tank (24 L)

Multimedia

Sky TV bracket with articulated arm
TV cabling (230 V socket)

Technology/heating/air conditioning

Fendt-CaravanCONNECT with app control
Fuse box (230 V) with residual current device (safety switch)
Hot water heating and hot water underfloor heating (Alde)
Smoke detector
Switch on the entrance door for the ceiling light and awning light
Switching power supply 350 W
USB double socket(s)

Total length cm: 860
Body length cm: 746
Useful length cm: 654
Total width cm: 250
max. Height cm: 265
Headroom cm: 198
Sleeping spaces: 4
Bed surface at front cm: 178/146 x 230
Bed surface at rear cm: 2 x 90 x 205
Bed surface in middle cm: -
Bunk bed surface cm: -
Technically permitted total mass kg: 2200 g)
Dead weigh kg^b: 1885
Basic equipment kg^a: 53
Mass in running the road kg^c: 1948
Vehicle load capacity kg approx.: 252
Floor / roof / wall thickness mm: 47 / 39 / 31
Tyresⁱ: 195/65 R 15
Single/tandem axle: double
Awning circumference cm^v: 1116

Chassis

"White" drawbar cover
"White" overrun device cover
Approval for 100 km/h
Automatic reversing
Black polished alloy wheels
Brake AAA, self-adjusting (AL-KO)
Euro axle system (AL-KO)
Extended crank supports
Galvanised stable-form corner steadies with "Big-Foot" (AL-KO)
Jockey wheel with load indicator
Low-profile tyres
Safety coupling AKS 3004 (AL-KO)
Shock absorber
System lightweight chassis, fully galvanised (AL-KO)

Exterior body

Manoeuvering handles, ergonomic and stable, at the front and rear
"Skylight" panoramic roof hood with lighting (LED)
Awning light (LED), switched twice
Awning rail with lighting on the door side
Bottle crate lid with gas-pressure damper, three-point locking
Brake lights integrated in upper position lights
Central locking system
Double-glazed, tinted hinged windows that can be operated with one hand and combined fly-screen/blackout roller blind
Entrance door with integrated and insulated access, waste collector and storage, tinted window and pleated blackout blind in the upper entrance door area
Exterior storage flap
Fly-screen door in the entrance area
Forced ventilation according to EN standard 1645-1
Front part partly with LFI technology
Rear fog lamp(s)
Rear part partly with LFI technology
Reversing lights (2 pieces)
Sandwich construction
Water tank filler cap with retaining strap
Wheel housings, fully insulated

Living room/sleeping area

Carpet in the door sill with the Fendt-Caravan logo
Carpeted floor, bound at the edge and loosely laid
Clothes rack in the sleeping area
Decorative package (2 cushions/2 placemats)
Ergonomically shaped back padding
Furniture in "Rovero Castello" decor, "Faro" or "Salina" upholstery variants as well as "Zingst" leather upholstery (optional extra)
Headrests in the seating suite, height adjustable
High-density seat upholstery
Indirect lighting (LED)
LED lighting
Leesspots 12V in rondzitgroep
Lift-O-Mat (single and double beds)
Lighting in the wardrobe with motion sensor
Mattresses: climate-controlled comfort foam (7 zones) (single/double beds)
MINI and MIDI roof hood (Dometic) with crank, forced ventilation, integrated blackout pleated blind and roller fly screen integrated in a Skylight panoramic roof hood
Reading spotlights (12 V) in the sleeping area
Seat upholstery with sprung interior in comfort quality
Slatted bed base with fully flexible and permanently elastic bridged joints and hardness adjustment (single and French beds)
Soft roller blinds with pleated fabric (blackout roller blind from below)
Storage compartments with soft-close hinges
Ventilated storage compartments with indirect ceiling lighting (LED)
Vinyl flooring, hard-wearing, easy to care for
Winter backrests
Wooden sliding door

Kitchen/bathroom

Washbasin with a sanitary acrylic design including shelves, bathroom cabinet and lighted mirror
Backlit kitchen wall panelling in glass look
Bathroom lighting (LED/12 V)
Brass kitchen mixer tap
Central washrooms with large wall units, generous shelves under the sink and an illuminated mirror
Comfort pleated roller blind on the kitchen window
Compressor refrigerator (177 l when freezer compartment is removed), slim tower, that can be opened from both sides, with interior lighting
Cutlery inserts with a soft-touch surface
Flush toilet with diode level indicator and holding tank (rollable)
Kitchen storage compartments with soft-close hinges
Kitchens with large drawers
Oven with grill (gas)
Shower cubicle
Stainless steel sink with glass cover
Stove with safety pilot and automatic ignition (3-burner)
Towel/clothes hooks and toilet paper holder
Washroom window, hinged, made of frosted glass with blackout roller blind and roller fly screen
Waste collector integrated into the entrance door
Workplace lighting (LED)

Water

Fresh water (fixed tank 10 d)/45 e) litres) with external filling
Fresh water level indicator
Mobile waste water tank (24 L)

Multimedia

Sky TV bracket with articulated arm
TV cabling (230 V socket)

Technology/heating/air conditioning

Fendt-CaravanCONNECT with app control
Fuse box (230 V) with residual current device (safety switch)
Hot water heating and hot water underfloor heating (Alde)
Smoke detector
Switch on the entrance door for the ceiling light and awning light
Switching power supply 350 W
USB double socket(s)

Teppich im Waschraum
